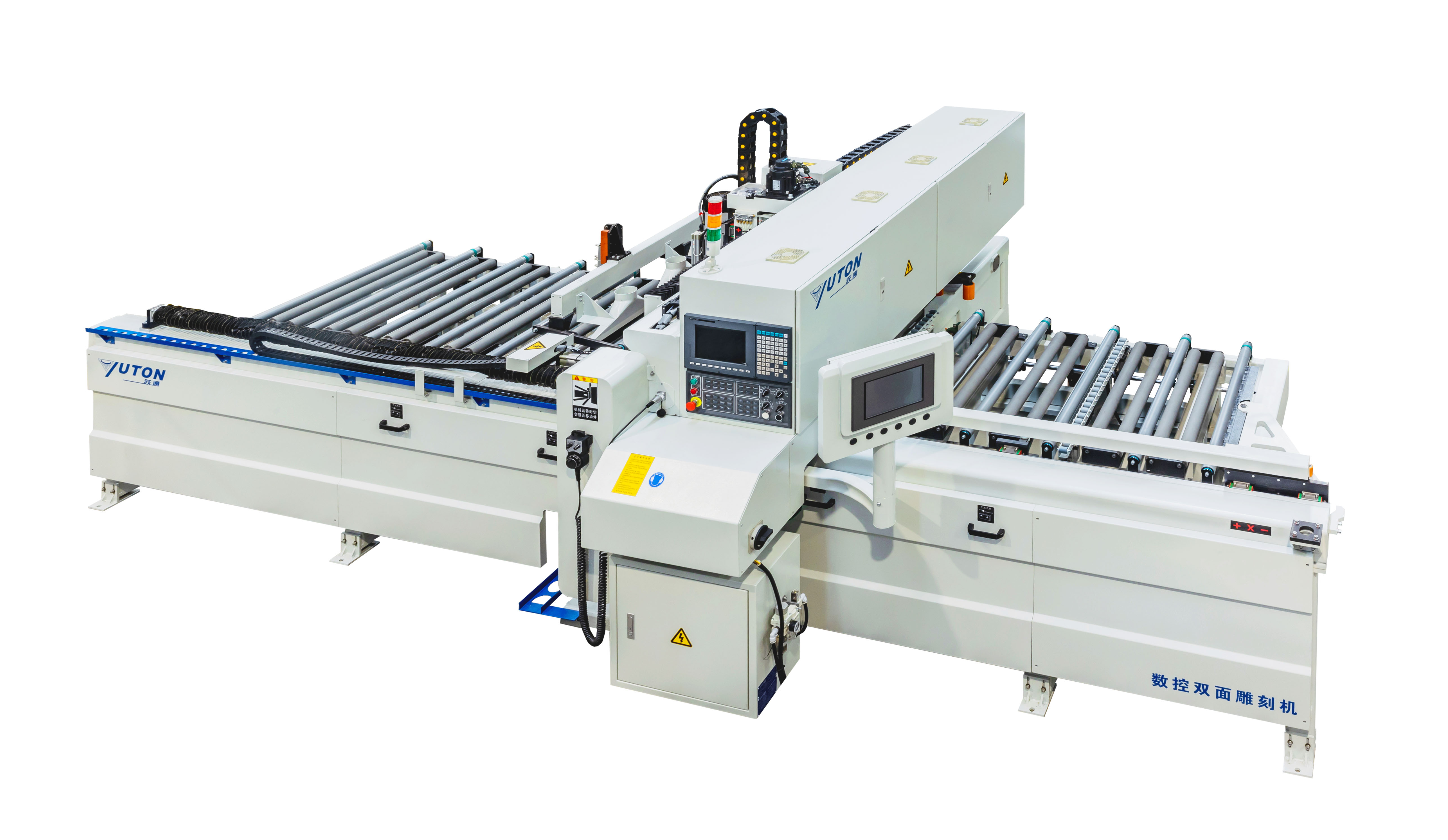

功能：门扇双面同时加工，省场地、省人工、效率高；自动进出料，顺逆向进出料任意切换，满足连线的需要；自动换刀，满足复杂图形的加工。
Function:This machine can engrave on door's double surfaces at the same time,save area & labor,high efficiency;automatic feed in & feed out,forward & backward feed in & feed out can be randomly shifted to satisfy demand of composing a line;automatic tool change for complicated shape machining.
技术参数
| 工件长度 Workpiece length |
1800-2400mm |
| 工件宽度 Workpiece width |
400-1100mm |
| 工件厚度 Workpiece thickness |
30-60mm |
| 上下主轴功率 Upper & bottom main spindle power |
2×9kw |
| 主轴最高转速 Max rotation speed of spindle |
18000rpm |
| 刀库形式及容量 Tool magazine type & capacity |
直线排列,上下各4把 Linear ranged,each 4 pcs for top & bottom |
| 外形尺寸 Overall dimensions |
5500×2800×2100mm |
| 重量 Weight |
4800kg |
|
