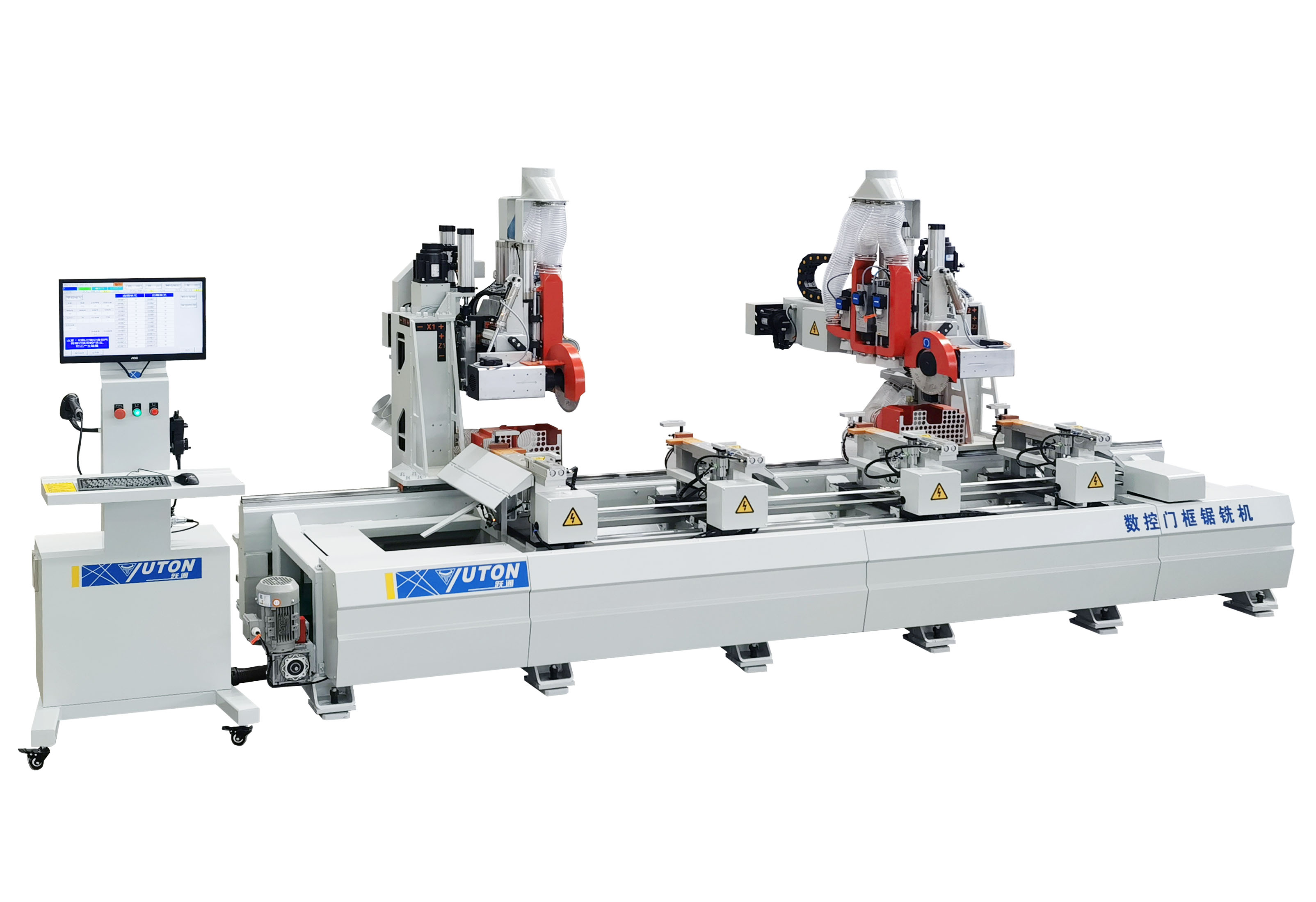

CNC DOOR FRAME CUTTING & MILLING MACHINE
Product Specifications Description:

 CNC DOOR FRAME CUTTING & MILLING MACHINE

Function:This machine is used for processing door frame,include 45/90 degree cutting,lock slot & hinge slot milling, installation face step milling (for 90 degree connection ),and L-shape architrave installation gap milling.

  • Wide applicability:suitable for pressed type door frame with door-stop strip,main & deputy part splicing type door frame as well as entire door frame;
  • High processing quality:cutting & milling at one time clamping to ensure high precision;automatic measure to eliminate thickness tolerance;left & right spindle milling to avoid edge broken;
  • Easy operation:QR scanning is avaliable;Automatic exchange worktable for two type door frames with flat bottom or step bottom;
  • Economical and practical:can be used as standalone machine or be connected in automatic production line.
  • Workpiece length 600-2600mm
    Workpiece width 90-350mm
    Workpiece thickness 18-40mm
    Cutting motor 2×3.7kw
    Milling motor 2×(2.2+2.2左旋+0.4)kw
    Total power 25kw
    Overall dimensions 4900×2600×2100mm
    Weight 3000kg
