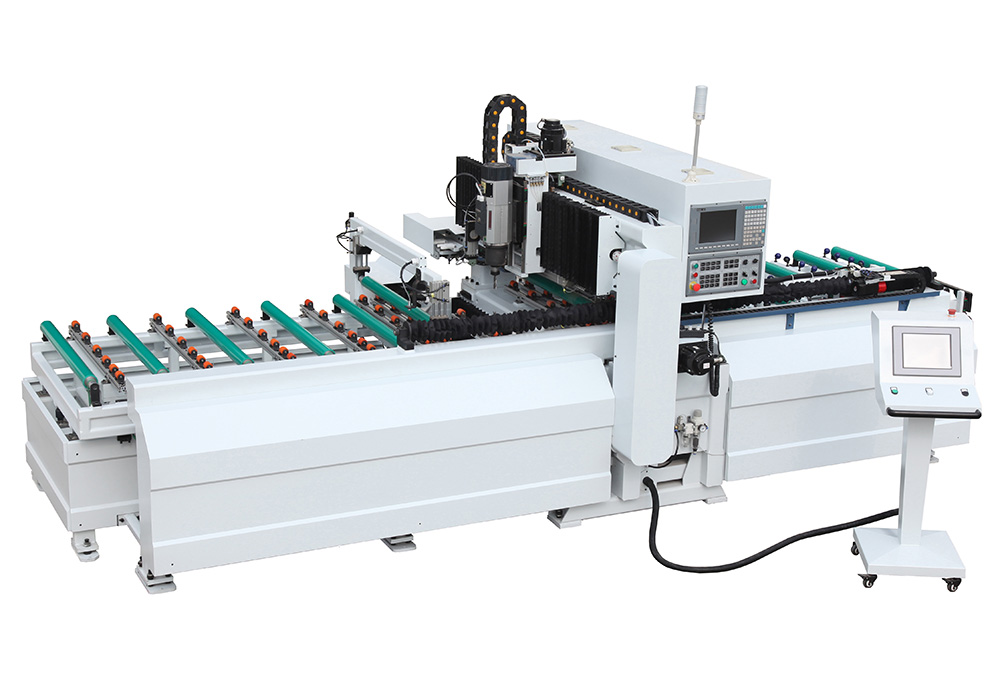

Double surface engraving machine MXK1124H2
Product Specifications Description:
This machine is used to engrave on both surface of door leaf at the same time.

Workpiece length: 1800-2400mm
Workpiece width: 500-1100mm
Workpiece thickness: 30-60mm
Upper main spindle power: 9kw
Bottom main spindle power: 3.8kw
Main spindle max rotation speed: 18000rpm
Tool magazine type & capacity: linear ranged, each 4 pcs for top & bottom
Overall dimensions: 5500*2800*2100mm
Weight: 4500kg

Previous:CNC lock hole & hinge slot machine MDK4120D
Next:Machining center MXK1224YAF
