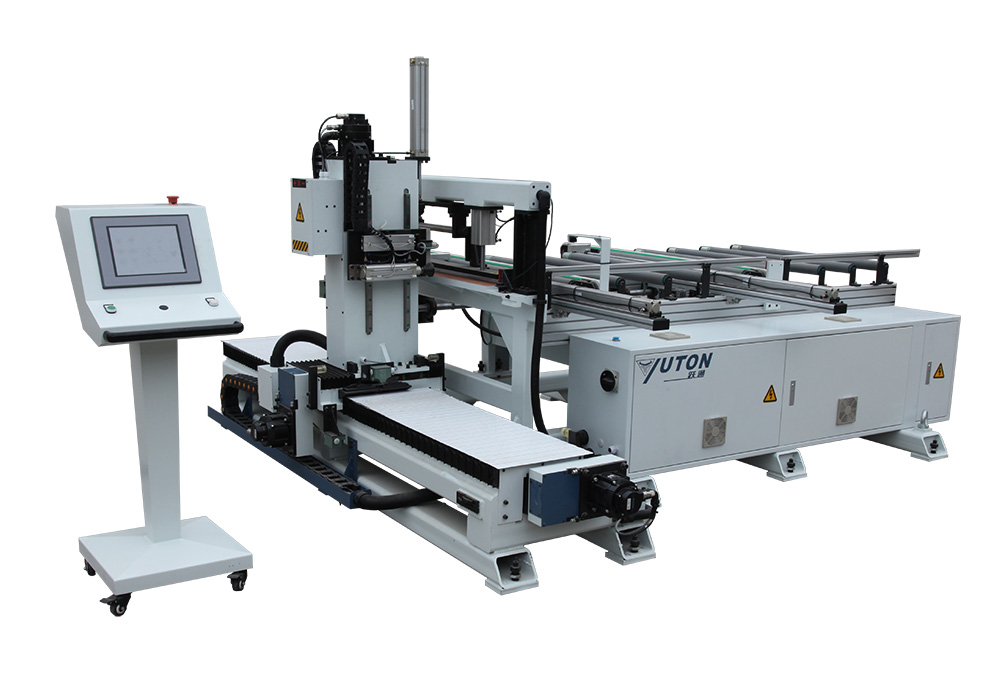

Door end processing machine MDK4124HB/HD
Product Specifications Description:

This machine is used for processing hardware hole and slot at door top or bottom edge, including hanging wheel slot, guide wheel slot,

dustproof strip slot, door closer slot, painting auxiliary hole.

  • Levo & dextro milling to ensure processing quality;
  • Through type feed in & feed out to satisfy demand of composing the line;
Workpiece length 1800-2400mm
Workpiece width 400-1100mm
Workpiece thickness 30-60mm
Spindle power of each group  3.7kw+1.5kw (levo)
Overall dimensions 3400*3100*2000mm
Weight 1700/2000kg
